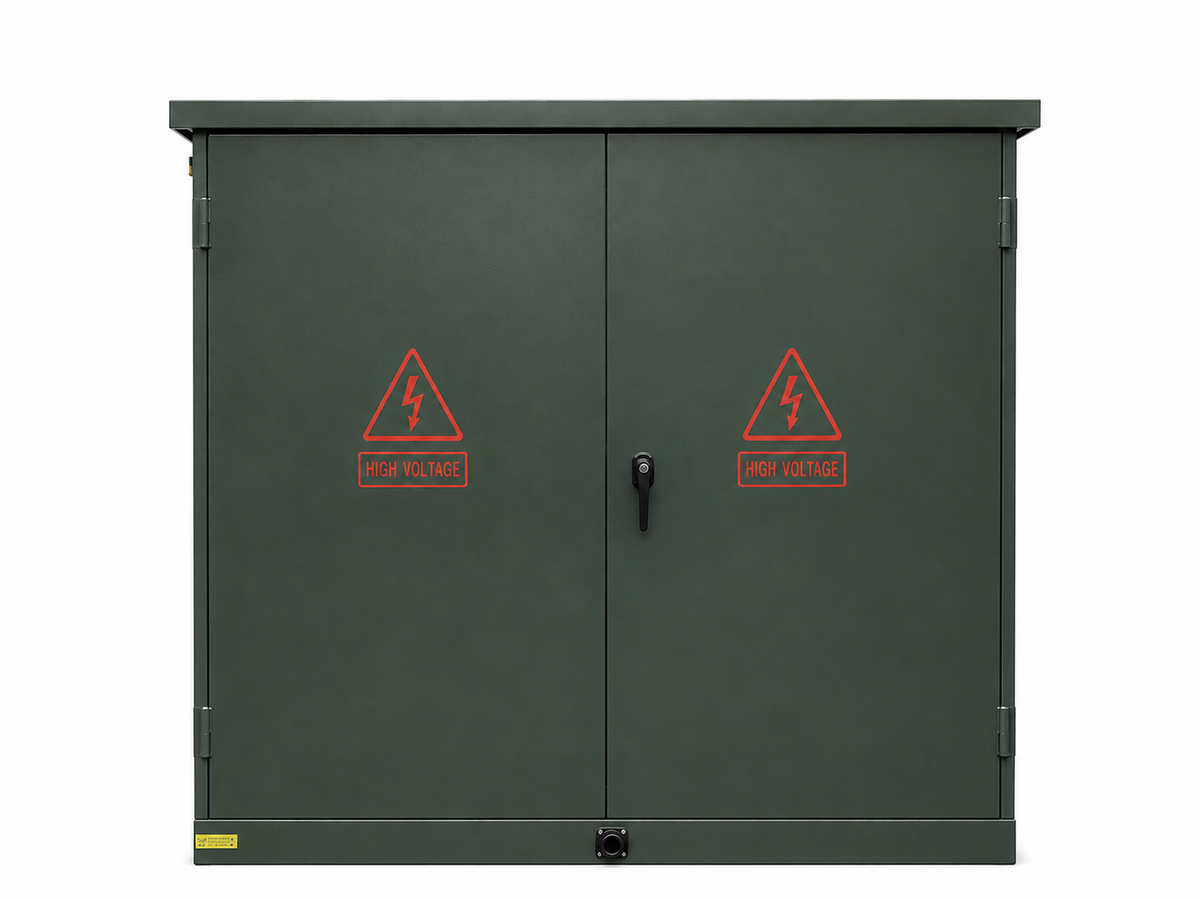

Three-Phase Oil-Immersed Pad-Mounted Transformer

Submit your pad-mounted transformer requirements with the required kVA, voltages and destination.

What information is needed for selection?

Specify the electrical system and the physical connection requirements together. A three-phase oil-immersed pad-mounted transformer must fit the intended network and installation layout; matching kVA and voltage alone is not sufficient.

• Electrical ratings: capacity, primary and secondary voltages, frequency, vector group and neutral arrangement.
• System requirements: impedance, insulation level or BIL, taps, load profile and applicable loss or efficiency limits.
• Cable interfaces: radial or loop feed, terminal arrangement, connector requirements and cable-entry layout.
• Equipment scope: protection, switching, monitoring and accessories required by the project.
• Installation: ambient conditions, altitude, enclosure requirements, foundation layout and access constraints.

Pad-mounted transformer questions and answers

How is this different from a pole-mounted transformer?

The installation and connection arrangements differ: a pad-mounted transformer is installed at ground level, while a pole-mounted design is intended for an elevated support arrangement. Choose according to the network design, cable routing, site access and utility requirements.

Should I specify radial feed or loop feed?

Use the feed arrangement required by the approved network design. Radial and loop arrangements affect the primary connections and equipment layout. Provide the single-line diagram and required switching arrangement so these interfaces can be checked.

Are dead-front connections included?

Do not assume the terminal configuration from the product name or cabinet image. State the required live-front or dead-front arrangement, connector interface and ratings. Availability and compatibility must be confirmed for the proposed transformer.

What capacity and voltage combinations can I request?

Send the required kVA, primary voltage, secondary voltage and frequency, together with the load profile. HEAKOR will need to review the requested combination before confirming a model. This page does not establish that every capacity and voltage combination is available.

Does the product name prove utility approval?

No. A three-phase oil-immersed pad-mounted transformer must be assessed against the destination's product standards, efficiency requirements, certification or listing requirements and utility specification. Identify mandatory approvals and documents at the enquiry stage.

What should I check when replacing an existing unit?

Provide the nameplate, foundation and cable-entry drawings, terminal details and available working space. Identify any changes to the load or protection arrangement. The replacement must match both the electrical requirements and installation interfaces.

Request a three-phase oil-immersed pad-mounted transformer quotation

Send your company name, project stage, quantity, destination and required delivery schedule with the core specifications. Mention available drawings and any required test reports. Final configuration, compliance, documents, price and delivery must be confirmed for the project.
