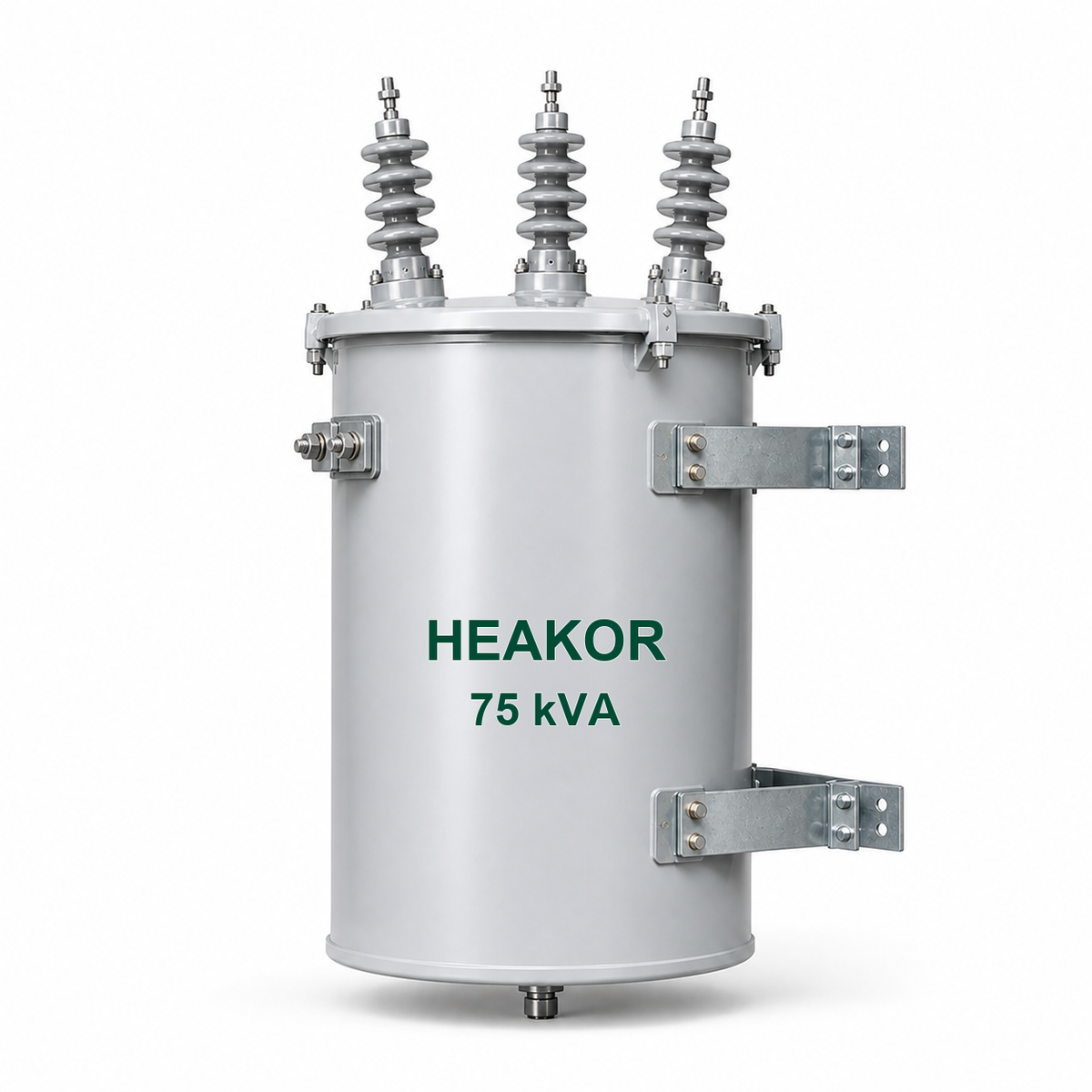

Product image for reference. Confirm the proposed configuration and drawing for your project.
HEAKOR / Transformer enquiries
75 kVA Three-Phase Pole-Mounted Transformer
The HEAKOR 75 kVA three-phase pole-mounted transformer is listed as an oil-immersed design for outdoor overhead distribution enquiries. This page identifies the 75 kVA, three-phase product and the information needed to review a proposed configuration. Final suitability depends on the project load, electrical system, utility requirements and installation conditions.
Listed product information
- Product type
- Pole-mounted
- Listed capacity
- 75 kVA
- Phase
- Three-phase
These details identify the listed product. The approved specification and drawing define the equipment supplied.
Quotation based on project requirements
Request a project quotationRead product informationOpen the document centreElectrical
Capacity · voltages · phase · frequency
Project
Application · destination · quantity · schedule
Documents
Specification · drawings · required approvals
Specifications, standards, certification scope and commercial terms are confirmed for the proposed equipment and project.
Request a 75 kVA three-phase transformer quotation with your voltages, quantity and destination.
75 kVA Three-Phase Pole-Mounted Transformer: Specification Checklist
- Listed configuration: 75 kVA, three-phase, oil-immersed, pole-mounted.
- Electrical system: primary and secondary voltages, frequency, vector group and neutral requirements.
- Design requirements: insulation level or BIL, tap range, impedance and specified losses or efficiency limits.
- Installation: support and mounting arrangement, site conditions, ambient temperature and altitude.
- Supply scope: bushings, terminals, protection devices, accessories, required tests and documents.
The checklist identifies requirements to confirm; it does not establish fixed values or included options. Specify the applicable standard, edition and utility requirements for the destination. Any certification or approval must be checked for the exact proposed design.
Planning a 75 kVA three-phase purchase
For a 75 kVA three-phase requirement, explain whether the project is at budget, tender or purchase stage. Include the load information, required connections and any installation restrictions. Identify mandatory utility requirements early so technical deviations can be resolved before order confirmation.
Buyer Questions
How should installation details be communicated?
Provide the proposed support arrangement, mounting dimensions, terminal clearances and access constraints. Request the proposed equipment weight and outline drawing for project review. Installation suitability must be confirmed for the actual equipment and site.
How are price and delivery confirmed?
Send your company name, project stage, quantity, destination and requested delivery date with the technical requirements. Mention available specifications, drawings or nameplate records so HEAKOR can arrange how to receive them. Final configuration, documents, tests, price and delivery require confirmation in the agreed quotation.
Discuss Your 75 kVA Project with HEAKOR
Use the enquiry form to share the requirements you have and mark open values as TBC. Identify any mandatory documents or approval steps before requesting a firm offer.
Submit Your Project Requirements. For the family overview, browse three-phase pole-mounted transformers.
Before requesting a quotation
Confirm the fit for your project.
A product name or capacity is the starting point. Include these requirements so the proposal can be reviewed against your project.
01
Electrical requirements
Capacity, primary and secondary voltages, phase, frequency, and any specified connection, impedance or tap requirements.
02
Installation requirements
Provide the mounting arrangement, connection requirements and serving utility specification. Include site constraints.
03
Documents and supply scope
State the required drawings, tests or approvals, quantity, destination and project schedule. Identify any mandatory requirements before quotation.
What if some specifications are not known yet?
Send the information you have and mark unknown items as to be confirmed. For a replacement, an existing nameplate, equipment photographs and site constraints help define the review. Final ratings and supply scope must be agreed in the quotation and approved documents.
Project documents
The right document. For the right model.
Tell us which documents your project needs. Availability and applicable scope are confirmed for the proposed model and configuration.
Outline and connection drawings
State the installation, cable-entry and clearance requirements you need to check.
Request for your projectTest and approval documents
Name the required tests, standard or approval, and the model or configuration concerned.
Request for your projectRequest documents for your proposed configuration
Include the model or product type, capacity, voltages, frequency and destination. Ask for the report number, date and test scope so you can check that the documents match the proposed configuration. An individual report does not establish certification for every model or destination.
When reviewing a document, match the legal entity, model, rating, applicable scope and issue date to your proposed equipment.
