50 kVA Single-Phase Pad-Mounted Transformer
Enquire about the 50 kVA Single-Phase Pad-Mounted Transformer with HEAKOR for underground power distribution projects with increased single-phase load requirements.
Listed product information
- Product type
- Pad-mounted
- Listed capacity
- 50 kVA
- Phase
- Single-phase
These details identify the listed product. The approved specification and drawing define the equipment supplied.
Quotation based on project requirements
Request a project quotationRead product informationOpen the document centreElectrical
Capacity · voltages · phase · frequency
Project
Application · destination · quantity · schedule
Documents
Specification · drawings · required approvals
Specifications, standards, certification scope and commercial terms are confirmed for the proposed equipment and project.
It may be considered for residential developments, commercial facilities and utility distribution systems. Final product configuration is determined according to the approved project specification.
50 kVA Single-Phase Pad-Mounted Transformer: Key Specifications
- Listed capacity for enquiry: 50 kVA
- Requested phase: Single-phase
- Requested product type: Liquid-filled pad-mounted distribution transformer
- Requested installation: Outdoor, pad-mounted
- Frequency: Provide the required site frequency for review
- Primary voltage inputs for review:
- Required system voltage and voltage class
- Transformer high-voltage terminal rating
- Phase-to-neutral voltage, where applicable
- System grounding and winding connection
- Utility voltage specification and terminal diagram
- Secondary voltage inputs for review:
- Required output voltage and neutral arrangement
- Connection and terminal requirements
- High-Voltage Configuration: State the required dead-front or live-front interface and cable connections
- Tap Range: Provide the required range and increments, or mark TBC for review
- Feed Arrangement: State the radial-feed or loop-feed requirement
- BIL: Provide the required insulation level and utility specification, or mark TBC
- Insulating Liquid: State any specified liquid and relevant environmental or fire requirements
- Applicable Standard: Provide the required standard and edition. If IEEE C57.12.38-2025 is specified, review its applicability to the proposed configuration
Applications
Potential applications include residential communities, commercial properties, municipal facilities and utility underground distribution networks.
The suitability of the 50 kVA rating must be confirmed using the project load calculation and distribution-system requirements.
Request a 50 kVA Single-Phase Pad-Mounted Transformer Quotation
Please provide the primary voltage, secondary voltage, frequency, quantity, feed arrangement, high-voltage configuration, required BIL, applicable standard, destination country, accessories and project specification.
What information helps review a 50 kVA project?
Include the load schedule, system voltage, and any expected additions to the connected loads. Identify whether this is a new installation or a replacement, and provide the utility specification for review.
Engineering Review
Voltage ratio, insulation level, taps, terminals, enclosure, insulating liquid, protection requirements and accessories will be reviewed before quotation.

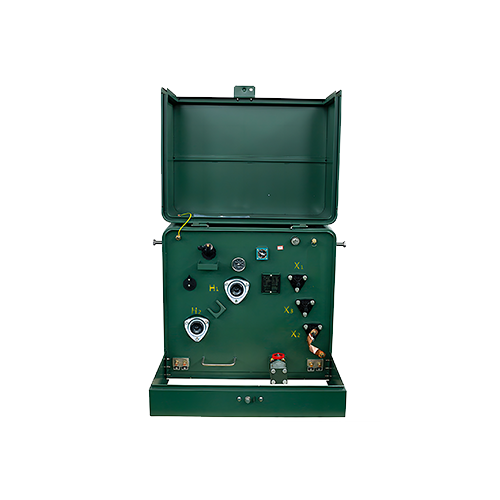

The product image illustrates this transformer family. Final enclosure dimensions and terminal layout must follow the approved project drawing.
Request a technical quotation with your specification, quantity and destination. For other ratings, view the single-phase pad-mounted transformer collection.
Before requesting a quotation
Confirm the fit for your project.
A product name or capacity is the starting point. Include these requirements so the proposal can be reviewed against your project.
01
Electrical requirements
Capacity, primary and secondary voltages, phase, frequency, and any specified connection, impedance or tap requirements.
02
Installation requirements
Describe the feed arrangement, cable connections, cabinet access and site layout. Include the project or utility specification.
03
Documents and supply scope
State the required drawings, tests or approvals, quantity, destination and project schedule. Identify any mandatory requirements before quotation.
What if some specifications are not known yet?
Send the information you have and mark unknown items as to be confirmed. For a replacement, an existing nameplate, equipment photographs and site constraints help define the review. Final ratings and supply scope must be agreed in the quotation and approved documents.
