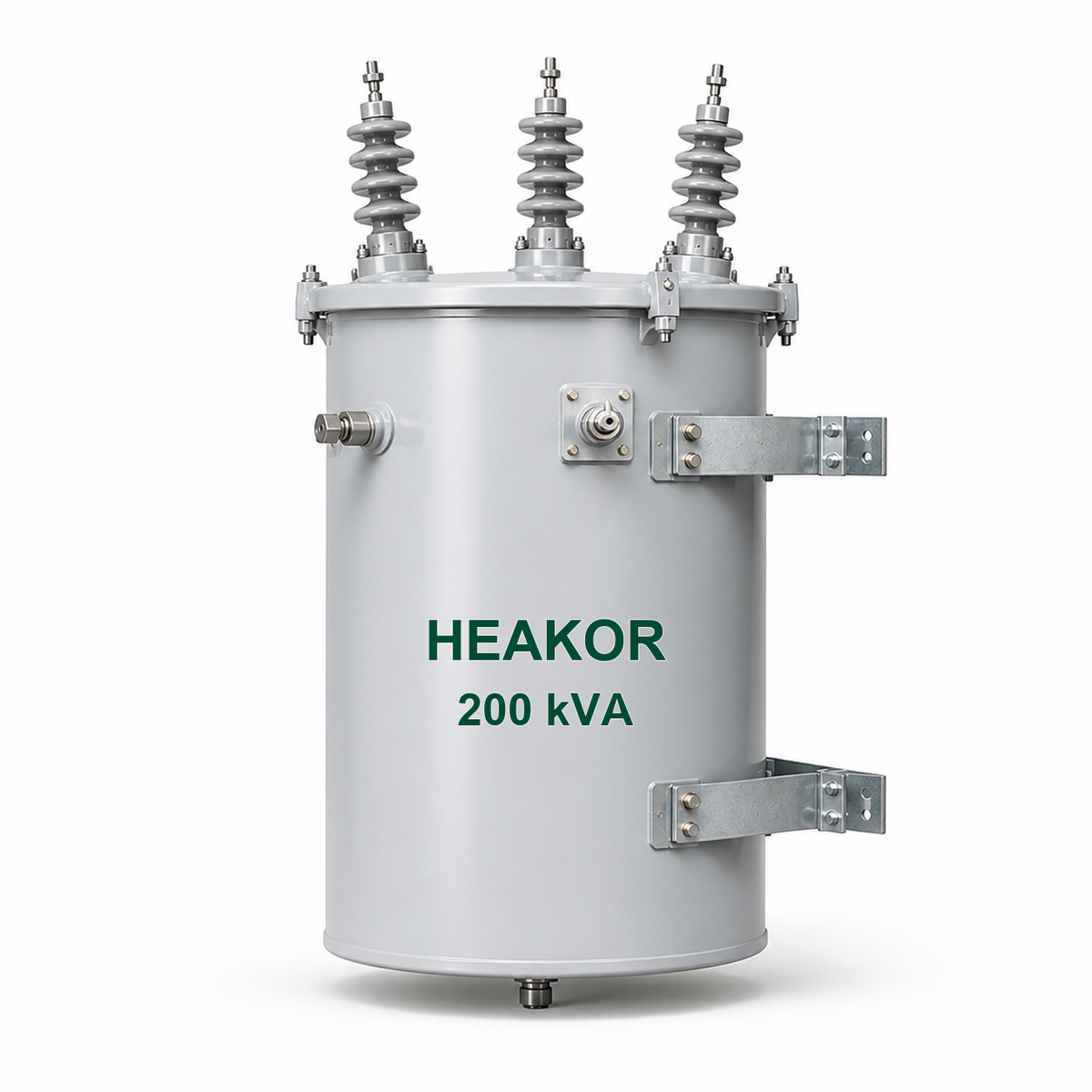

Product image for reference. Confirm the proposed configuration and drawing for your project.
HEAKOR / Transformer enquiries
200 kVA Three-Phase Pole-Mounted Transformer
The HEAKOR 200 kVA three-phase pole-mounted transformer is listed as an oil-immersed design for overhead distribution projects. For a project specifying 200 kVA, provide both the electrical ratings and the operating load information. The listed capacity does not establish suitability for a particular motor, process or combination of loads.
Listed product information
- Product type
- Pole-mounted
- Listed capacity
- 200 kVA
- Phase
- Three-phase
These details identify the listed product. The approved specification and drawing define the equipment supplied.
Quotation based on project requirements
Request a project quotationRead product informationOpen the document centreElectrical
Capacity · voltages · phase · frequency
Project
Application · destination · quantity · schedule
Documents
Specification · drawings · required approvals
Specifications, standards, certification scope and commercial terms are confirmed for the proposed equipment and project.
Submit your 200 kVA project requirements for technical review and quotation.
What load information is needed for a 200 kVA enquiry?
For a 200 kVA three-phase pole-mounted transformer, confirm the following before finalizing the order:
- Electrical requirements: primary and secondary voltages, frequency, vector group, neutral arrangement, impedance and insulation levels.
- Operating conditions: load profile, ambient temperature, altitude, losses and temperature-rise requirements.
- Installation and supply: support and mounting details, terminals, taps, protection, accessories and required documents.
- Compliance: the required standard and edition, destination-country and utility requirements, certification scope and specified tests.
Buyer questions and answers
Is the total connected load enough for selection?
Provide the connected loads and their expected operating pattern, including which loads run together. Identify motor-starting arrangements and any special equipment requirements. A capacity label alone is insufficient for engineering selection.
What if future equipment will be added?
Describe the existing load and the planned additions separately, with their expected timing and operating conditions. Request review of the complete design requirement rather than assuming a fixed spare-capacity percentage is suitable.
Which electrical details must be agreed?
Confirm primary and secondary voltages, frequency, winding connection, neutral requirements and impedance. Include insulation levels, taps and protection requirements from the project specification. Mark values still under review as TBC.
Does the product name confirm certification or utility approval?
No. Compliance and approval must be established for the exact proposed design and destination. Identify mandatory certificates, test documentation and utility requirements at the enquiry stage; none should be assumed from the capacity or product category.
Request a 200 kVA three-phase pole-mounted transformer quotation
Send HEAKOR your company name, project stage, quantity, destination and requested delivery schedule with the technical requirements. Final configuration, documents, tests, price and delivery need written confirmation.
Request a 200 kVA transformer quotation. For the family overview, see three-phase pole-mounted transformers.
Before requesting a quotation
Confirm the fit for your project.
A product name or capacity is the starting point. Include these requirements so the proposal can be reviewed against your project.
01
Electrical requirements
Capacity, primary and secondary voltages, phase, frequency, and any specified connection, impedance or tap requirements.
02
Installation requirements
Provide the mounting arrangement, connection requirements and serving utility specification. Include site constraints.
03
Documents and supply scope
State the required drawings, tests or approvals, quantity, destination and project schedule. Identify any mandatory requirements before quotation.
What if some specifications are not known yet?
Send the information you have and mark unknown items as to be confirmed. For a replacement, an existing nameplate, equipment photographs and site constraints help define the review. Final ratings and supply scope must be agreed in the quotation and approved documents.
Project documents
The right document. For the right model.
Tell us which documents your project needs. Availability and applicable scope are confirmed for the proposed model and configuration.
Outline and connection drawings
State the installation, cable-entry and clearance requirements you need to check.
Request for your projectTest and approval documents
Name the required tests, standard or approval, and the model or configuration concerned.
Request for your projectRequest documents for your proposed configuration
Include the model or product type, capacity, voltages, frequency and destination. Ask for the report number, date and test scope so you can check that the documents match the proposed configuration. An individual report does not establish certification for every model or destination.
When reviewing a document, match the legal entity, model, rating, applicable scope and issue date to your proposed equipment.
