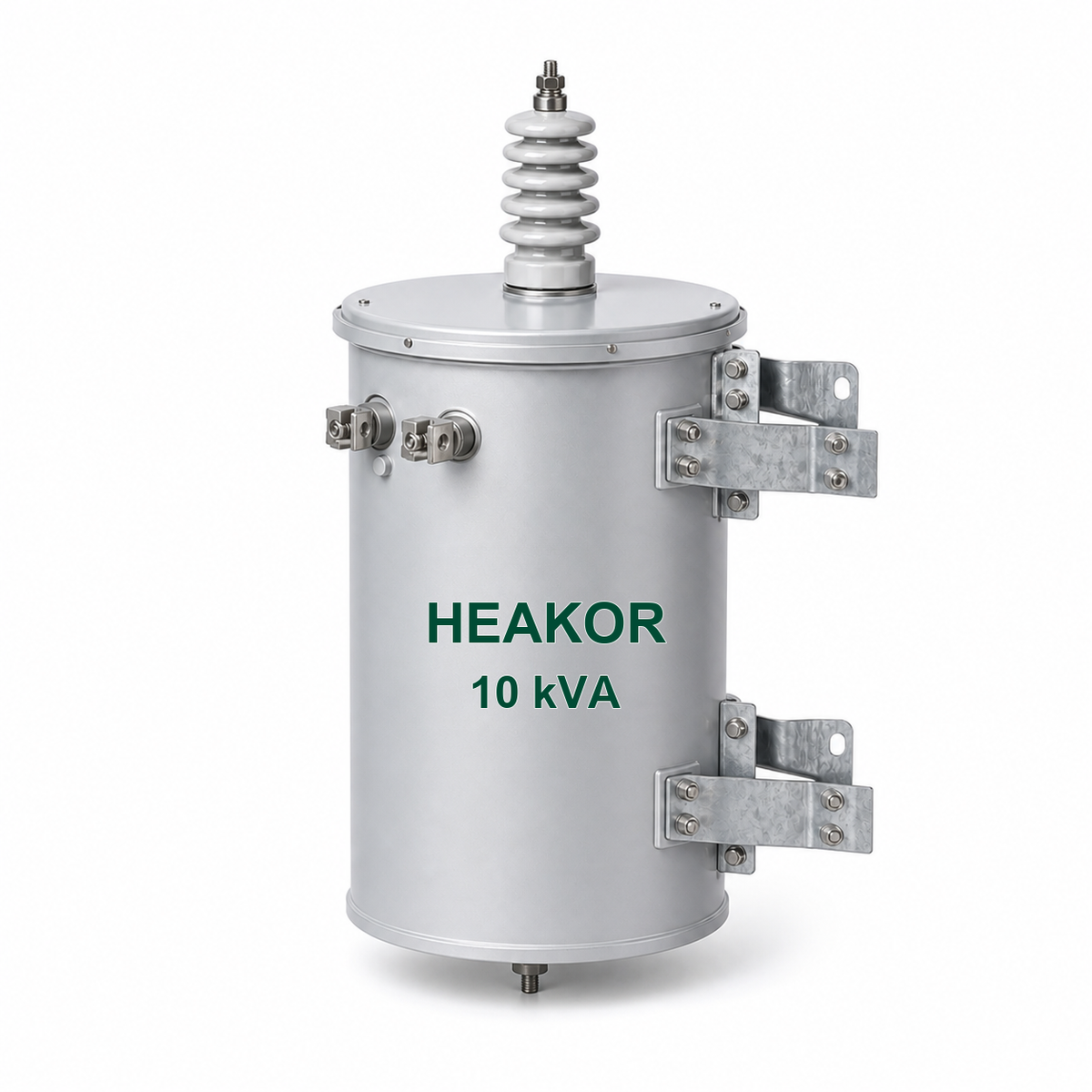

10 kVA Single-Phase Pole-Mounted Transformer
The 10 kVA Single-Phase Pole-Mounted Transformer from HEAKOR is listed as an oil-immersed unit for outdoor overhead distribution enquiries. This page identifies the product configuration and the information needed for a project review. Final selection depends on the connected load, electrical system, utility requirements and installation conditions.
Listed product information
- Product type
- Pole-mounted
- Listed capacity
- 10 kVA
- Phase
- Single-phase
These details identify the listed product. The approved specification and drawing define the equipment supplied.
Quotation based on project requirements
Request a project quotationRead product informationOpen the document centreSpecifications, standards, certification scope and commercial terms are confirmed for the proposed equipment and project.
Request a 10 kVA transformer quotation with your voltages, quantity and destination.
10 kVA Single-Phase Pole-Mounted Transformer: Specification Checklist
- Listed configuration: 10 kVA, single-phase, oil-immersed, pole-mounted.
- Electrical supply: primary and secondary voltages, frequency, grounding and secondary terminal arrangement.
- Design requirements: insulation level or BIL, tap range, impedance and specified losses or efficiency limits.
- Installation: mounting dimensions, support arrangement, ambient temperature, altitude and site conditions.
- Supply scope: bushings, terminals, protection devices, accessories, required tests and technical documents.
Specify the applicable standard, edition and serving-utility requirements. Values and options in this checklist require confirmation for the proposed design; they are not fixed specifications or included accessories. Any certification or utility approval must be checked for that exact configuration.
Planning a 10 kVA Overhead Connection
Identify whether the enquiry concerns a new connection or a replacement. Include the operating load, motor-starting requirements where relevant, and planned additional equipment. The 10 kVA designation alone does not establish suitability for a particular service or load profile.
Buyer Questions
Can this replace an existing 10 kVA transformer?
A matching capacity is only one selection input. Provide the existing nameplate details, system voltages, frequency, terminal layout and mounting drawing. The electrical configuration, clearances and support requirements need review before confirming a replacement.
How are price, tests and delivery confirmed?
Send your quantity, destination, requested delivery date and project specification. Identify mandatory drawings, test reports and approval steps. HEAKOR can review the enquiry before confirming the configuration, supply scope, price and delivery in a quotation.
Request a 10 kVA Single-Phase Pole-Mounted Transformer Quotation
Use the enquiry form to share your company name, project stage and available technical requirements. Mark unknown values as TBC so they can be reviewed before a firm offer.
Submit Your Project Requirements. For the product family, browse single-phase pole-mounted transformers.
Compare the listed capacities
Review the single-phase pole-mounted series, or include your required rating and project details in an enquiry.
View the capacity range ↗Project documents
The right document. For the right model.
Tell us which documents your project needs. Availability and applicable scope are confirmed for the proposed model and configuration.
Outline and connection drawings
State the installation, cable-entry and clearance requirements you need to check.
Request for your projectTest and approval documents
Name the required tests, standard or approval, and the model or configuration concerned.
Request for your projectRequest documents for your proposed configuration
Include the model or product type, capacity, voltages, frequency and destination. Ask for the report number, date and test scope so you can check that the documents match the proposed configuration. An individual report does not establish certification for every model or destination.
When reviewing a document, match the legal entity, model, rating, applicable scope and issue date to your proposed equipment.
