A transformer fluid change from mineral oil to natural ester in a new liquid-filled substation transformer requires review of the offered equipment configuration. Before ordering, confirm the exact fluid, the manufacturer's design acceptance, the project fire-safety evidence, and the revised test and document schedule. A fluid datasheet alone does not establish that the transformer or its installation is acceptable.

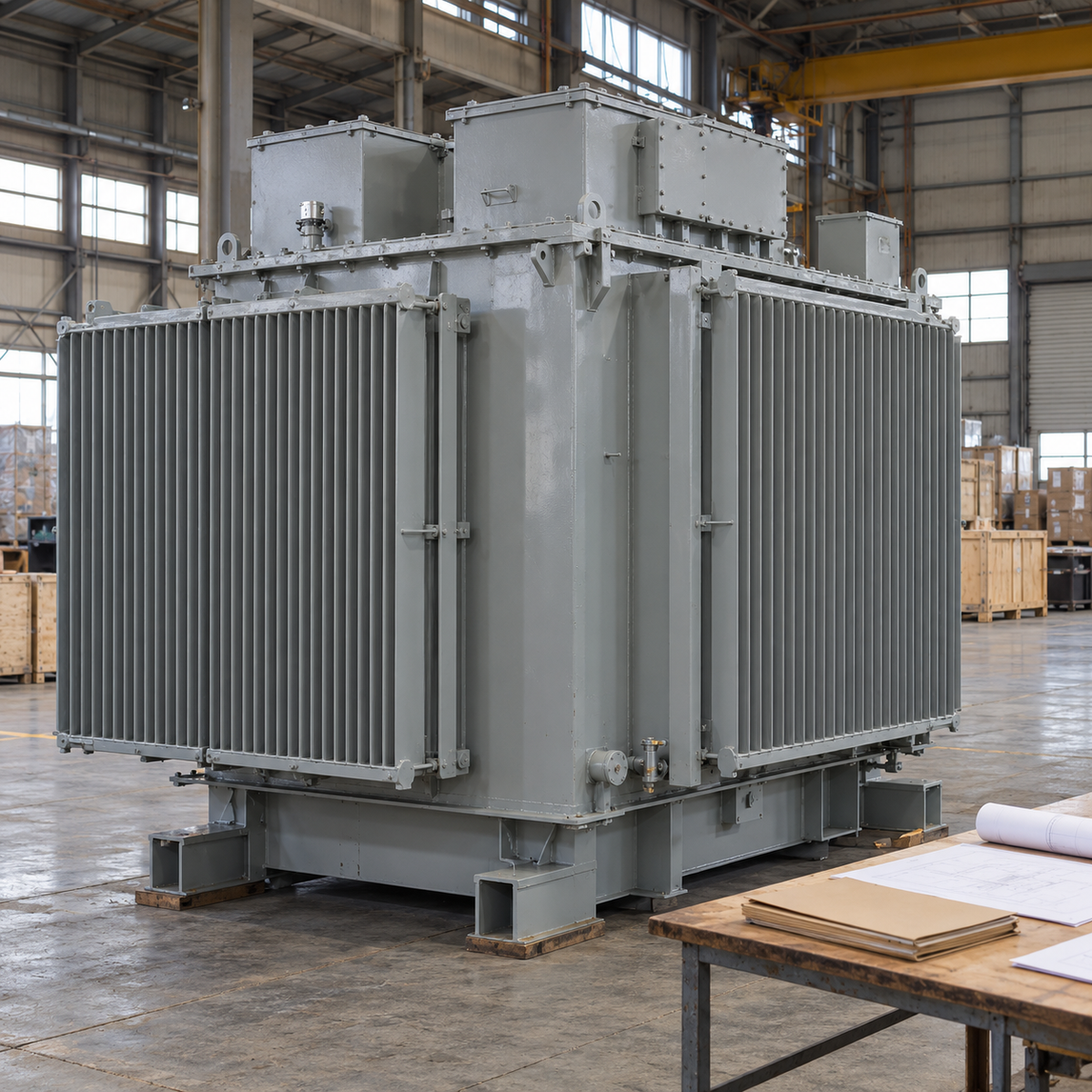

AI-generated illustration of a transformer document-review setting; not an actual HEAKOR product, facility or project. The image does not identify the insulating fluid.
This guide is for U.S. industrial EPC and procurement teams comparing a mineral-oil quotation with a proposed natural-ester alternative before purchase. It is a document-review framework, not instructions for draining, filling, retrofilling or energizing a transformer.
Start with the reason for the fluid change
Record the requirement the alternative must satisfy. Is the project specifying a particular fluid, a less-flammable liquid, an environmental property, or a complete equipment approval? These are different acceptance questions. Ask the responsible engineer to identify the governing specification and the parties who must accept the change.
Keep the original proposal and the revised offer together. Require a written deviation or change schedule that identifies the selected fluid and the affected documents. Do not let a new fluid name appear only in an email while the quotation, drawing and test schedule retain the original configuration.
Identify the fluid and the scope of its evidence
Specify the actual product designation and the agreed standard and edition. “Natural ester” identifies a fluid category; it does not identify a supplier product, a test report or the complete transformer design.
ASTM's public scope for ASTM D6871-26 covers natural-ester insulating fluid used for insulation and cooling. Crucially, its scope applies to new fluid as received before processing. A document against that specification should therefore be reviewed for that fluid stage, rather than treated as the acceptance record for the factory-filled transformer. The ASTM catalogue lists this edition as active; the project's responsible engineer must still establish the contractual edition.
Request the fluid datasheet, safety data sheet and the required delivery-quality evidence. Agree how the liquid identity and relevant records will be associated with the supplied transformer. Keep fluid receiving evidence, equipment factory tests and any later site records separate.
Ask the manufacturer what changes in the transformer design
Obtain written confirmation for the proposed configuration, including any changes and any limits that remain. The review should address:
- Thermal duty: the specified rating, loading assumptions, cooling arrangement, temperature-rise requirements and ambient conditions.
- Low-temperature conditions: the site's minimum ambient and the applicable operating limitations.
- Tank and liquid-preservation arrangement: how the proposed design controls contact with air and moisture.
- Materials and accessories: the suitability of seals, gaskets, coatings and fluid-contact components for the selected liquid and service conditions.
- Guaranteed data: which losses, dimensions, weights, liquid quantity and other offer values remain valid, and which require revision.
These are review questions, not a statement that every fluid change requires every component to change. For example, a natural-ester supplier's delivery specification calls for manufacturer verification of low-ambient applications because viscosity differs from mineral oil. That product-specific guidance supports asking for design confirmation; it does not establish a universal temperature limit for all natural esters.
Do not assume a higher transformer rating, lower losses or a longer guaranteed service life from a fluid brochure. Use the manufacturer's agreed data for the exact transformer design and project duty. Any proposed rating change needs its own documented acceptance.
Separate environmental claims from fire and equipment acceptance
Review environmental evidence, fluid fire classification, transformer certification and installation acceptance as separate records. A biodegradability result does not establish fire approval. A classification for a liquid does not, by itself, certify the complete transformer. A fluid supplier’s fire-safety reference, for example, identifies the fluid as a component of approved transformers in its qualification notes.
For any project requirement concerning a less-flammable liquid, ask for the current evidence for the exact fluid and its applicable use restrictions. Separately request the transformer-level certification or listing evidence required by the purchase specification, with the covered model or configuration identified.
Have the responsible project professionals confirm the installation requirements under the applicable adopted code, project documents and insurer requirements. Do not remove containment, separation, barriers or other protection measures solely because a quotation now says “natural ester.” This checklist does not establish installation clearances or a code-compliance route.
Transformer fluid change: pre-order acceptance schedule
One compact schedule can prevent the revised offer from being accepted with unresolved assumptions. The following is a suggested purchasing tool, not a mandatory standards form.
| Review item | Evidence to request | Question to close before order |
|---|---|---|
| Fluid identity | Product designation, datasheet, safety data sheet and specified standard/edition | Does every affected document identify the same liquid? |
| Design suitability | Manufacturer's configuration review and revised guaranteed data | Is the offered design accepted for the stated duty and environment? |
| Materials and accessories | Written confirmation covering the relevant fluid-contact components | Are qualifications or component changes recorded? |
| Fire and installation basis | Fluid evidence, required equipment evidence and project review disposition | Have the relevant reviewers accepted the actual configuration? |
| Tests and documents | Revised inspection/test plan, methods, criteria and reporting schedule | Does each record cover the correct liquid, equipment and acceptance stage? |
| Commercial scope | Revised quotation, exclusions and delivery commitments | Are the consequences of the alternative explicit and agreed? |
Revise acceptance criteria without copying brochure values
Distinguish specified limits from typical properties. The fluid supplier's storage and handling guide explicitly warns against using its typical values as acceptance limits. Its compatibility and contamination guidance is also product-specific; obtain the corresponding instructions for the liquid actually offered.
Have the engineer and supplier agree the required fluid tests, methods, editions, sample stages and acceptance basis. Do not carry a mineral-oil criterion into the revised purchase file without checking its applicability. For the separate question of interpreting a breakdown-voltage report, use the oil BDV report-review guide; that guide does not establish a universal ester threshold.
Before issuing the purchase order, identify the approved revision of the offer, drawing, guaranteed-data schedule and test plan. Record unresolved deviations and their decision owners rather than treating missing answers as acceptance.
Frequently asked questions
Does a mineral-oil quotation remain valid if we request natural ester?
Ask for a revised offer or explicit written confirmation of the unchanged scope. Confirm the design, guaranteed data, document package, price and delivery commitment for the requested configuration before ordering.
Can a fluid supplier's certificate replace the transformer test package?
No. Keep the certificate within its stated product and test scope. Agree separately which equipment tests and reports the transformer supplier must provide.
Can we specify “natural ester or equivalent”?
Only with a defined acceptance basis and an agreed substitution-review process. Identify the required properties, applicable evidence and person authorized to accept an alternative; the phrase alone leaves the comparison unresolved.
Should this checklist be used for an installed transformer's fluid replacement?
No. This guide addresses a new-transformer proposal before purchase. An installed unit needs a separate equipment-specific engineering review and authorized procedures.
