167 kVA Single-Phase Pad-Mounted Transformer

It may support larger residential developments, commercial projects and utility applications where the calculated load and distribution-system design require this capacity.

167 kVA Single-Phase Pad-Mounted Transformer: Key Specifications

• Listed capacity for enquiry: 167 kVA
• Requested phase: Single-phase
• Requested product type: Liquid-filled pad-mounted distribution transformer
• Requested installation: Outdoor, pad-mounted
• Frequency: Provide the required site frequency for review
• Primary voltage inputs for review:
  • Required system voltage and voltage class
  • Transformer high-voltage terminal rating
  • Phase-to-neutral voltage, where applicable
  • System grounding and winding connection
  • Utility voltage specification and terminal diagram
• Secondary voltage inputs for review:
  • Required output voltage and neutral arrangement
  • Connection and terminal requirements
• High-Voltage Configuration: State the required dead-front or live-front interface and cable connections
• Tap Range: Provide the required range and increments, or mark TBC for review
• Feed Arrangement: State the radial-feed or loop-feed requirement
• BIL: Provide the required insulation level and utility specification, or mark TBC
• Insulating Liquid: State any specified liquid and relevant environmental or fire requirements
• Applicable Standard: Provide the required standard and edition. If IEEE C57.12.38-2025 is specified, review its applicability to the proposed configuration

Applications

This transformer may be considered for larger single-phase loads in residential, commercial, institutional and utility distribution projects.

Application suitability must be determined through load calculations, system studies and the applicable utility specification.

Request a 167 kVA Single-Phase Pad-Mounted Transformer Quotation

Provide the voltage ratio, frequency, quantity, feed arrangement, high-voltage configuration, BIL, standard, accessories, environmental conditions and project drawings.

Does 167 kVA define the complete transformer configuration?

No. Specify the primary and secondary voltages, frequency, feed arrangement, terminals, and required insulation level. Include the utility specification and load information so the electrical and mechanical requirements can be reviewed together.

Engineering Review

Electrical ratings, insulation coordination, terminal arrangements, enclosure, protection devices and accessories will be confirmed during engineering review.

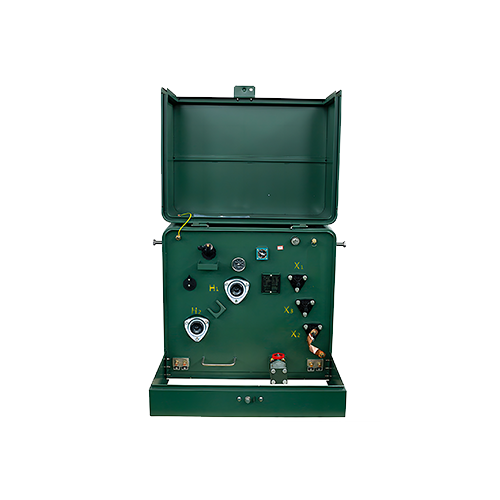

The product image illustrates this transformer family. Final enclosure dimensions and terminal layout must follow the approved project drawing.

Request a technical quotation with your specification, quantity and destination. For other ratings, view the single-phase pad-mounted transformer collection.
