100 kVA Single-Phase Pad-Mounted Transformer

It may be considered for larger residential developments, commercial properties, institutional facilities and utility distribution systems when supported by the project load study.

100 kVA Single-Phase Pad-Mounted Transformer: Key Specifications

• Listed capacity for enquiry: 100 kVA
• Requested phase: Single-phase
• Requested product type: Liquid-filled pad-mounted distribution transformer
• Requested installation: Outdoor, pad-mounted
• Frequency: Provide the required site frequency for review
• Primary voltage inputs for review:
  • Required system voltage and voltage class
  • Transformer high-voltage terminal rating
  • Phase-to-neutral voltage, where applicable
  • System grounding and winding connection
  • Utility voltage specification and terminal diagram
• Secondary voltage inputs for review:
  • Required output voltage and neutral arrangement
  • Connection and terminal requirements
• High-Voltage Configuration: State the required dead-front or live-front interface and cable connections
• Tap Range: Provide the required range and increments, or mark TBC for review
• Feed Arrangement: State the radial-feed or loop-feed requirement
• BIL: Provide the required insulation level and utility specification, or mark TBC
• Insulating Liquid: State any specified liquid and relevant environmental or fire requirements
• Applicable Standard: Provide the required standard and edition. If IEEE C57.12.38-2025 is specified, review its applicability to the proposed configuration

Applications

Potential applications include larger residential developments, commercial buildings, municipal facilities and underground utility distribution networks.

The 100 kVA rating should be selected only after reviewing the connected load, demand factor, system voltage and expected expansion.

Request a 100 kVA Single-Phase Pad-Mounted Transformer Quotation

Provide all required electrical ratings, configuration requirements, accessories, environmental conditions, destination country and applicable project standards.

Which documents help with a 100 kVA quotation?

Provide the project load schedule and single-line diagram where available, plus the required voltage ratio, quantity, destination, and delivery schedule. Identify required drawings, test documents, and utility submission requirements in the enquiry.

Engineering Review

The electrical design, mechanical configuration, protection scheme and applicable standard will be reviewed before quotation and production.

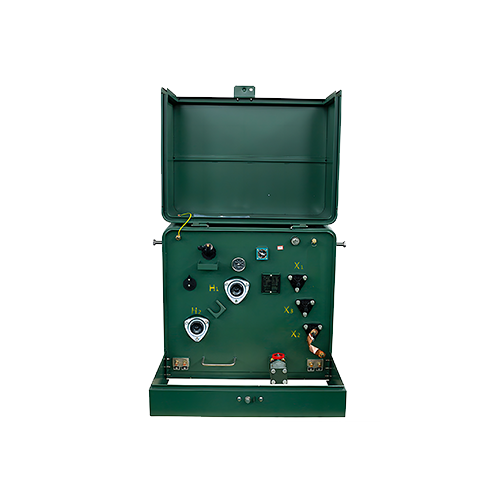

The product image illustrates this transformer family. Final enclosure dimensions and terminal layout must follow the approved project drawing.

Request a technical quotation with your specification, quantity and destination. For other ratings, view the single-phase pad-mounted transformer collection.
